Product Description

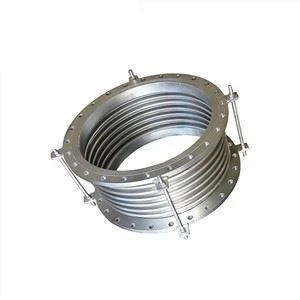

Bellows In Steel Used For Structures is a compensation element, effective use of bellows telescopic body deformation, dimensional change in absorption pipeline, pipe, thermal expansion and contraction caused by the container, or compensation pipeline, conduit, vessel axial, transverse and angular displacement. Bellows in steel used for structures is mainly used for noise reduction and vibration reduction. Bellows In Steel Used For Structures is widely used in modern industry.

Function

1. Bellows In Steel Used For Structures can compensating the axial, transverse and angular thermal deformations of the absorption duct.

2. to facilitate the installation and disassembly of valves and pipes.

3. to reduce the impact of equipment vibration on the pipeline.

Classification

Bellows In Steel Used For Structures, axial, horizontal, angular type of three types of tens of thousands of specifications, different types and specifications of products, according to customer care settings and the amount of compensation and other requirements of the design and production.

Product Parameters

Main joint dimension of high quality metal expansion joint
Nominal diameter	Quantity of ripple	MPa Pressure level					Effective area of corrugated tube	Maximum exteral diameter
		0.25	0.6	1.0	1.6	2.5
		Axal compensation length mm/ toughness N/mm
32	8	25/21	22/26	20/26	18/63		16	225
32	16	50/11	46/14	41/14	36/32		16	225
40	8	25/28	22/44	20/44	18/89	15/98	23	244
40	16	50/14	46/22	41/22	36/45	31/47	23	244
50	8	25/30	22/51	20/70	18/70	15/106	37	259
50	16	50/16	46/26	41/35	36/35	31/55	37	259
65	8	33/28	30/35	26/44	22/55	15/138	55	270
65	12	42/16	38/22	38/32	34/40	31/70	55	270
80	8	40/20	36/26	34/33	28/41	19/68	81	284
80	10	53/14	49/17	49/21	43/26	29/50	81	284
100	6	45/47	45/60	40/75	35/93	25/54	121	304
100	10	76/26	74/32	64/40	57/50	38/33	121	304
125	5	48/38	42/47	38/59	34/74	29/117	180	334
125	9	85/23	77/29	66/36	58/45	49/63	180	334
150	5	49/42	44/50	40/62	34/78	29/92	257	364
150	8	79/34	71/43	64/51	54/59	50/56	257	364
200	4	52/49	46/55	42/68	38/78	29/97	479	442
200	6	73/31	65/44	59/52	53/58	46/65	479	442
250	4	72/30	65/34	59/52	52/45	34/111	769	507
250	6	108/16	97/21	87/35	79/39	48/78	769	507
300	4	72/51	65/55	59/59	52/65	47/55	1105	562
300	6	108/32	97/35	87/37	79/41	71/47	1105	562
350	4	72/58	65/62	59/67	52/74	47/71	1307	622
350	6	108/38	97/41	87/44	79/48	71/45	1307	622
400	4	72/54	65/58	59/62	52/68	47/81	1611	700
400	6	108/36	97/39	87/43	79/47	71/47	1611	700
450	4	108/32	97/35	87/37	79/41	47/75	1972	760
450	6	162/20	145/22	131/23	118/25	71/52	1972	760
500	4	108/59	97/64	87/68	79/75	71/45	2445	835
500	6	162/34	145/37	131/39	118/43	106/28	2445	835
600	4	108/74	97/80	87/85	79/94	71/82	3534	980
600	6	162/42	145/45	131/49	118/53	106/48	3534	980
700	4	108/67	97/72	87/77	79/85	71/103	4717	1110
700	6	162/42	145/45	131/49	118/53	106/60	4717	1110
800	4	120/88	108/95	102/102	94/112	71/95	5822	1265
800	6	183/67	164/72	156/77	144/85	106/60	5822	1265
900	4	120/84	108/90	102/97	94/107	82/123	7620	1186
900	6	183/60	164/65	156/69	144/76	125/93	7620	1186
1000	4	120/91	108/98	102/105	94/116	82/117	9043	1286
1000	6	183/59	164/65	156/71	144/81	125/84	9043	1286
