Products Description

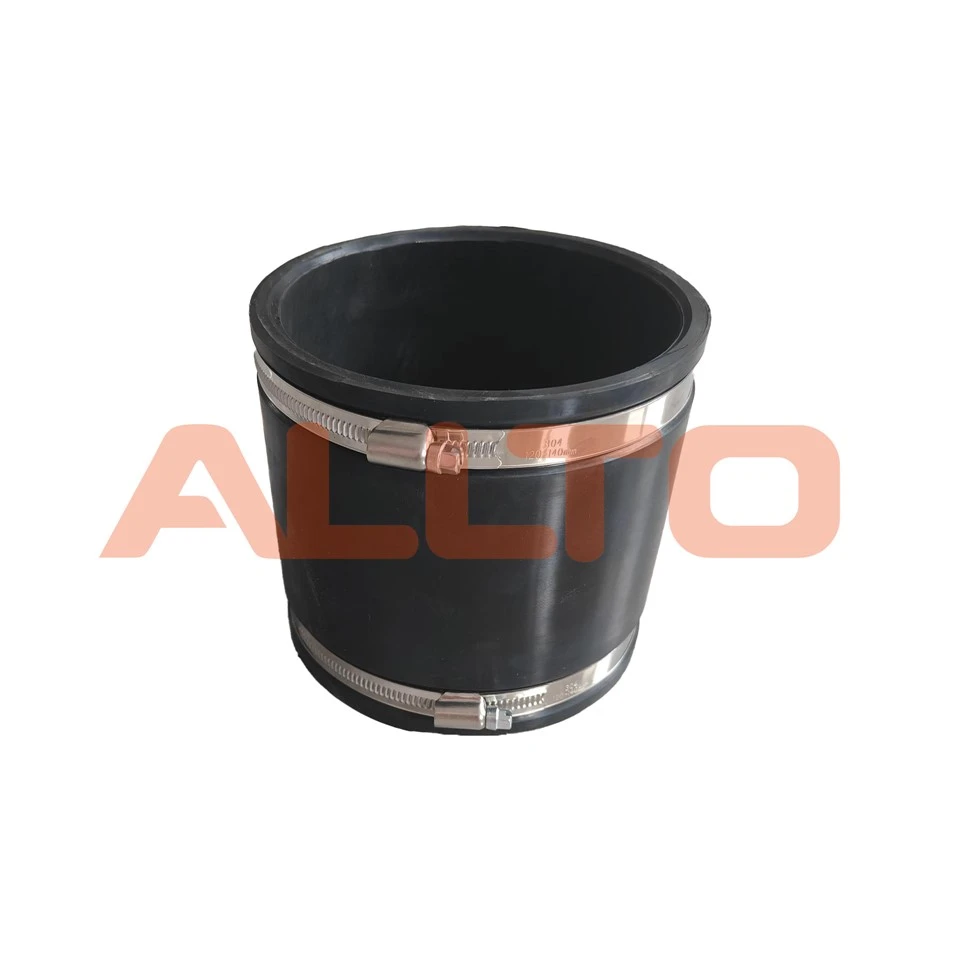

Straight cylinder clamp type flexible rubber soft joint is a pipeline connection component with good sealing and shock absorption performance. It is composed of rubber and clamps, used to connect pipes of different materials, diameters, and shapes. Clamp type rubber flexible joints are commonly used in municipal pipelines, chemical pipelines, water supply pipelines, drainage pipelines, and other fields.
The Straight cylinder clamp type flexible rubber soft joint has multiple advantages. Firstly, its installation and maintenance are very convenient, without the need for special tools or equipment, only some ordinary tools are needed to complete it. Secondly, its performance is stable and can adapt to various environments. Again, it has excellent shock absorption and buffering performance, which can effectively reduce the vibration and vibration of pipelines during natural disasters such as earthquakes. Finally, the clamping rubber flexible joint has excellent sealing performance, which can effectively prevent the loss of liquids and gases.
Product parameters
|
size |
ActuaI I.D.(mm) |
OAL (mm) |
Movement |
pressure |
|||
|
AxiaI compression (mm) |
AxiaI Extension (mm) |
LateraI (mm) |
pressure (bar) |
vacuum (bar) |
|||
|
DN65 |
75 |
110 |
19 |
6 |
6 |
0.34 |
-0.34 |
|
DN80 |
90 |
110 |
19 |
6 |
6 |
0.34 |
-0.34 |
|
DN100 |
110 |
110 |
19 |
6 |
6 |
0.34 |
-0.34 |
|
DN125 |
125 |
130 |
19 |
6 |
6 |
0.34 |
-0.34 |
Advantage
Straight cylinder clamp type flexible rubber soft joint can withstand deformation such as vibration, displacement, and expansion of pipelines, and has good flexibility to adapt to different pipeline connection angles and directions.
Straight cylinder clamp type flexible rubber soft joint is made of high-quality rubber and stainless steel materials, with high chemical corrosion resistance and corrosion stress propagation resistance.
The installation of this product is very convenient and fast. Just use the joint to clamp the pipeline, no other tools or materials are needed.
The product is also easy to disassemble and replace. Simply remove the clamp connection, remove the old part, install the new part, and then tighten the clamp without affecting or damaging the pipeline system.
Straight cylinder clamp type flexible rubber soft joint has a long service life, good stability, and can ensure the safety and reliability of pipeline systems, reducing maintenance and replacement frequency.

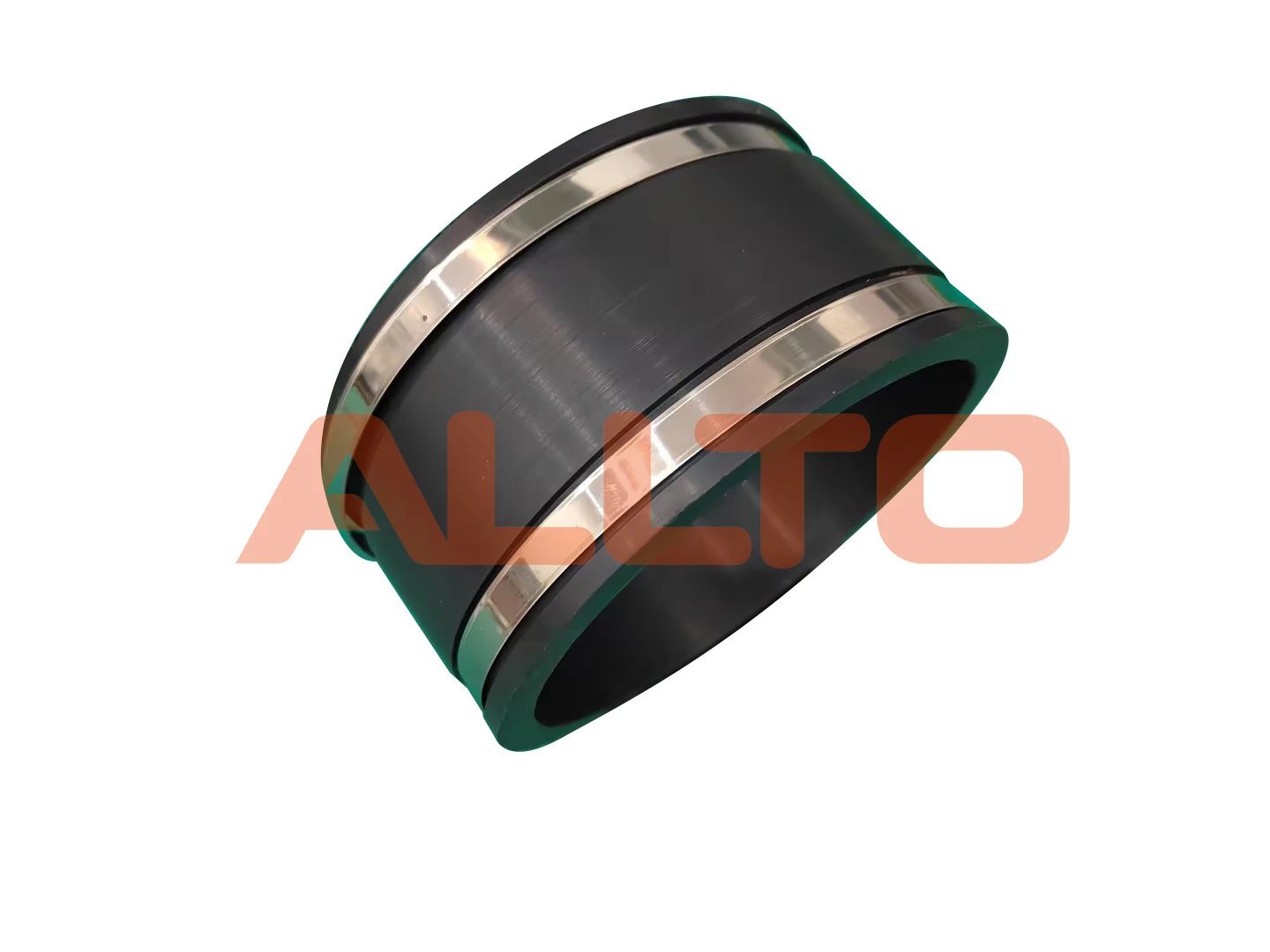

Product Display
Our company is a professional company specializing in the production of water supply and drainage equipment.
and pipeline accessories. we have been producing since 1996 , reasonable price ,high quality and considerate service.
main products:Rubber Expansion Joints, Flexible Hose, Metallic Expansion Bellows,Dismantling Joints,Valves.
We have a young and energetic team. The team members are highly educated and qualified. They know how to
operate and manage; they understand how to be a harmonious unit and adept in self-improvement. We strive to
build a team which is based on "people oriented.work in earnest" We provide a coordinated-process service for
our clients during the whole purchase process.
Hot Tags: straight-cylinder clamp-type flexible rubber soft joint, China, suppliers, manufacturers, factory, wholesale, customized, buy, low price, made in China
