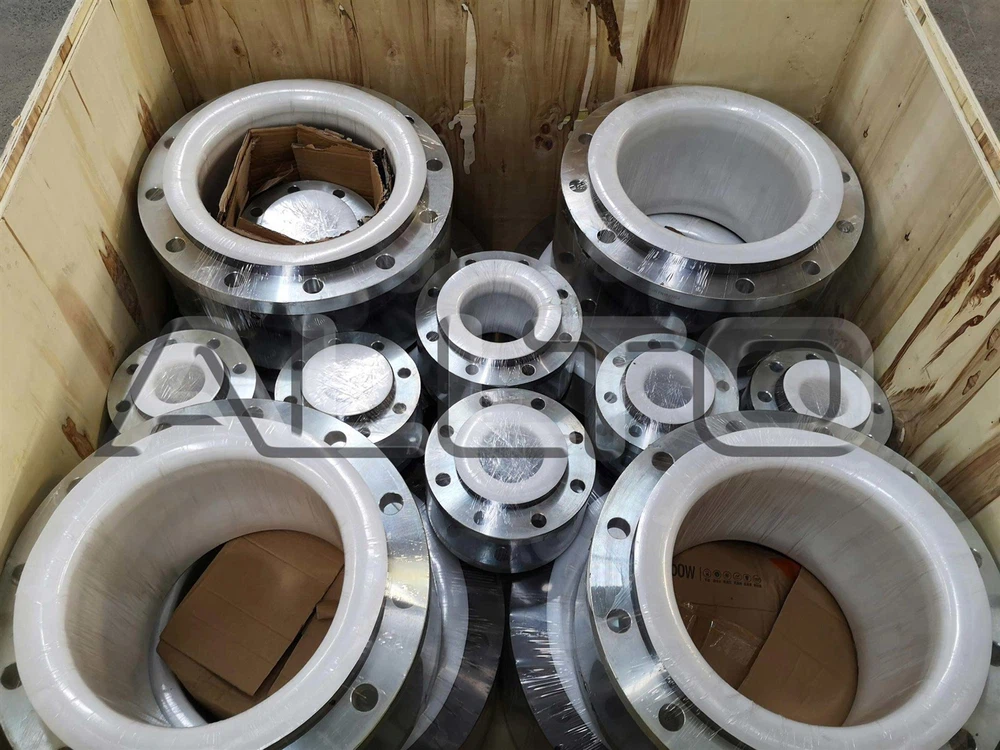

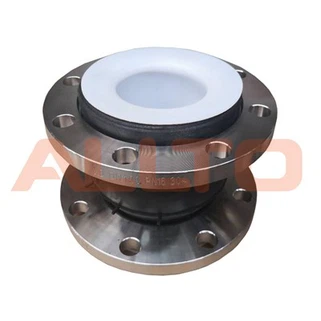

The Single Arch PTFE Lined Expansion Joint is a type of expansion joint used in pipeline systems. It features a single arch structure and utilizes polytetrafluoroethylene (PTFE) as its lining material. This joint can provide horizontal, axial, and angular compensation in response to changes in temperature, pressure, and vibration within the pipeline. It exhibits excellent corrosion resistance, high-temperature resistance, and pressure resistance, making it suitable for industrial applications such as chemical processing, petroleum, natural gas, and more.
PTFE, an abbreviation for polytetrafluoroethylene, is a high-performance plastic material known for its many excellent characteristics, including non-stick properties, corrosion resistance, high-temperature resistance, and electrical insulation. As a result, it is widely used in coatings, pipeline facilities, medical devices, and various other industries and applications.
The Single Arch PTFE Lined Expansion Joint features a unique design that allows it to absorb and compensate for the expansion, contraction, and misalignment of the pipeline. Its single arch structure provides flexibility, enabling the expansion joint to operate effectively even under challenging conditions.
The PTFE lining offers excellent corrosion resistance, ensuring that the expansion joint has a prolonged service life. Additionally, PTFE provides high-temperature resistance, making it ideal for use in high-temperature environments. The non-stick nature of the lining helps prevent the buildup of debris and corrosion on the surface, thus maintaining the expansion joint's performance.
Furthermore, this product is easy to install, as it comes with pre-drilled flanges that ensure proper alignment during installation. It is also easy to maintain, and any necessary repairs can be easily made by replacing the PTFE lining.
In conclusion, the Single Arch PTFE Lined Expansion Joint is a versatile and reliable solution suitable for various pipeline systems. Its unique design, combined with the excellent properties of PTFE, makes it an outstanding choice for applications in the chemical, petroleum, natural gas, and other industries where corrosion resistance, high-temperature resistance, and pressure resistance are critical requirements.
Product parameters
Material
|
NO. |
Part |
Material |
|
1 |
Flange |
CS / SS304 / SS316 |
|
2 |
Pressurized Ring |
Carbon steel wires strand |
|
3 |
Outer/Inner Rubber |
EPDM / NBR / NEOP |
|
4 |
Reinforcing Fabric |
Nylon cord fabric |
|
5 |
Liner |
PTFE |
Detailed parameters
|
Size |
Length |
Axial |
Lateral |
Angular |
||
|
mm |
inch |
Extension(mm) |
Compression(mm) |
(mm) |
(deg) |
|
|
32 |
1-1/4 |
95 |
6 |
9 |
9 |
15 |
|
40 |
1-1/2 |
95 |
6 |
10 |
9 |
15 |
|
50 |
2 |
105 |
7 |
10 |
10 |
15 |
|
65 |
2-1/2 |
115 |
7 |
13 |
11 |
15 |
|
80 |
3 |
135 |
8 |
15 |
12 |
15 |
|
100 |
4 |
150 |
10 |
19 |
13 |
15 |
|
125 |
5 |
165 |
12 |
19 |
13 |
15 |
|
150 |
6 |
180 |
12 |
30 |
14 |
15 |
|
200 |
8 |
210 |
16 |
25 |
22 |
15 |
|
250 |
10 |
230 |
16 |
25 |
22 |
15 |
|
300 |
12 |
245 |
16 |
25 |
22 |
15 |
Advantage
1. The Single Arch PTFE Lined Expansion Joint offers excellent corrosion and wear resistance.
2. Its single convex design allows it to function effectively in high-temperature and high-pressure environments.
3. It effectively reduces vibration and noise within the pipeline system.
4. It allows for easy installation and maintenance.
5. It can bend and expand freely to adapt to changes in the pipeline system.
